Mechanical movements, powers, devices and appliances; (1903)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The N.W. Henley & co. · leaf 227

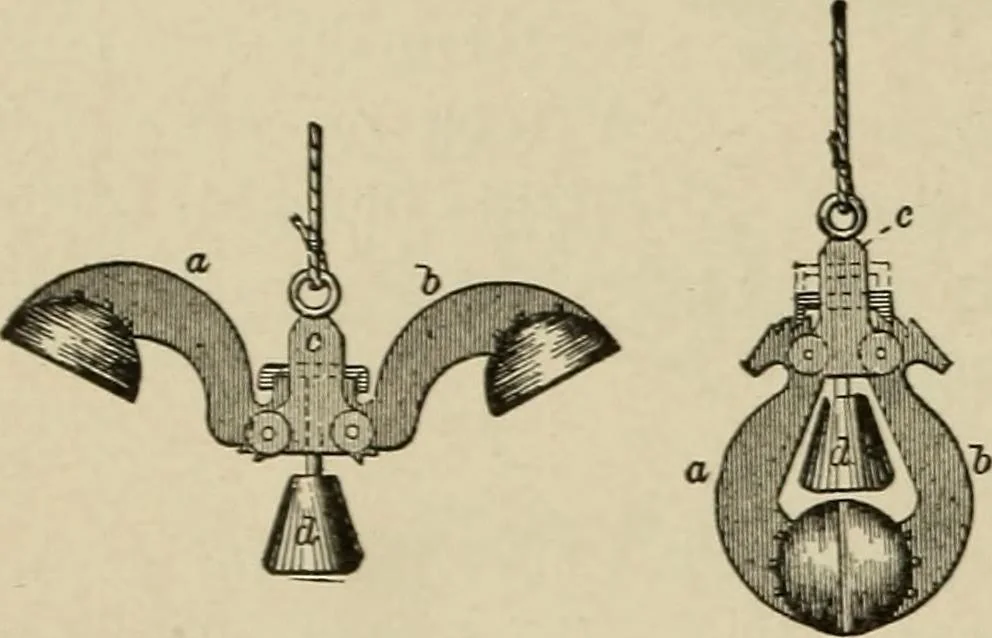

840. SOUNDING WEIGHT RELEASE for deep-sea sounding. A hollow spindle attached to the sound-ing-line encloses a hook lever, sprung out by a spring.A spindle, with an impact head, slides behind the leverand releases the ball at the moment the head strikesthe bottom. 841. SAMPLER SOUND-ING WEIGHT.—The… … 842. Cups closed.
Mechanical movements
