A textbook on the locomotive and the air brake (1901)
International Correspondence Schools · Scranton, Pa., International textbook co · leaf 29

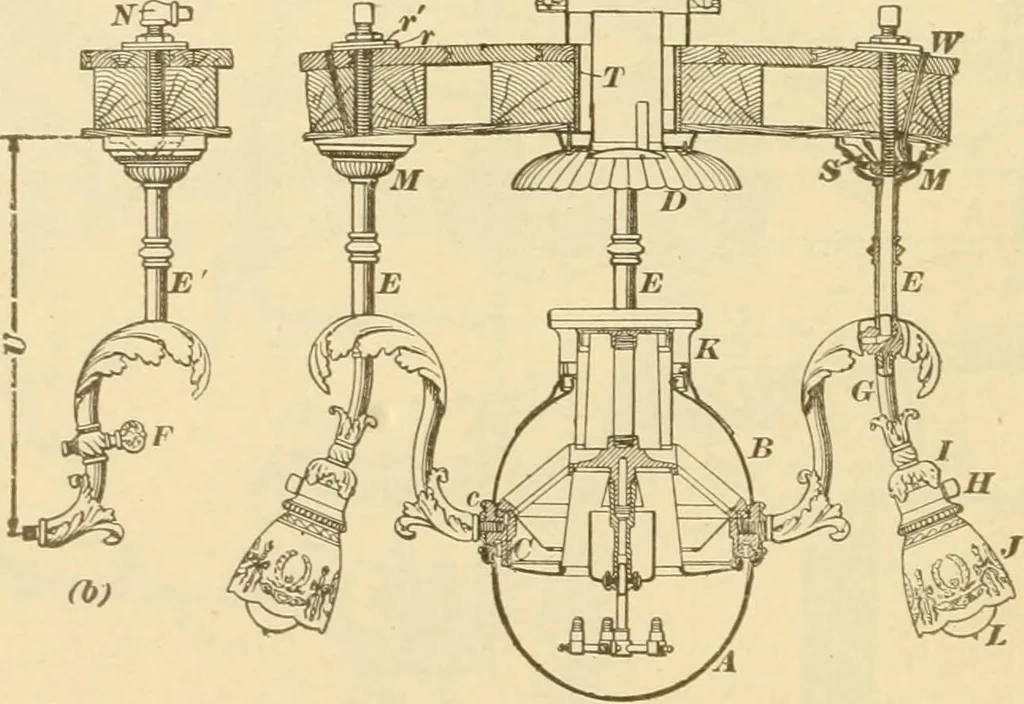

top of cluster where the burner screws in; also, the distancebetween reflector and top of burner when in position. Anotherimportant dimension is the distance between faces of ring andcup reflectors; it should be ^ inch, as shown in the lampnext described. 13. Fig. 11 illustrates a type of lamp used… … round the lamp. The various other parts are lettered to corre-spond with those in Fig. 10. The descending arrows show thecourse taken by the incoming air, while the ascending arrowsshow the path of the escaping hot air and gases after leavingthe flame and bowl. The glass bowl is made air-tight on…
Locomotives · Locomotive boilers · Railroad cars
Internet Archive · Northeastern University Library · Public Domain Mark 1.0. Free to use for anything.
![An illustration from [Electric engineering.] (1902)](https://img.insideoutlibrary.com/img/200/ia-electricengineer03inte-455-280.webp)
