Handbook for machine designers, shop men and draftsmen (1916)
Halsey, Frederick A. (Frederick Arthur), 1856-1935 · New York, McGraw-Hill book company, inc.; [etc., etc.] · leaf 83

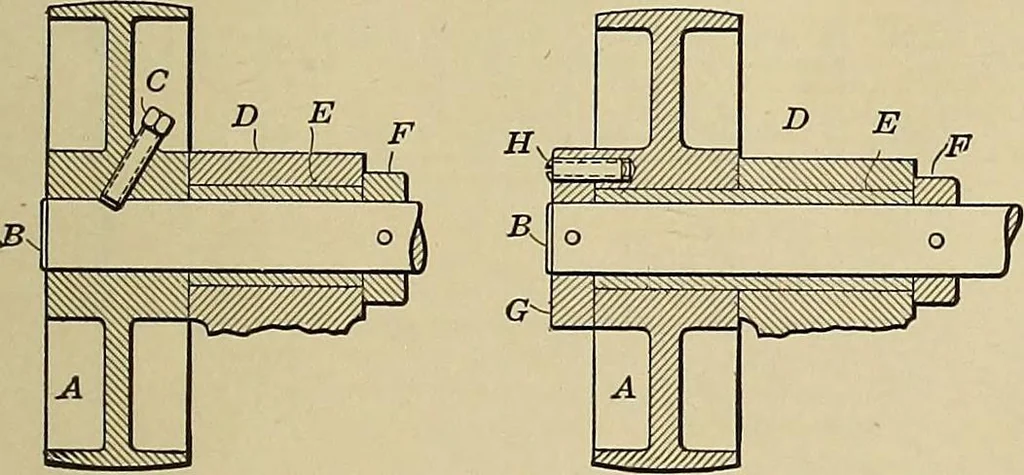

Fig. 34.- -Crowning for beltpulleys. Fig. 35. Fig. 36. Figs. 35 and 36.—Correct and in-correct parting of split pulleys. increases as the wear on the bush increases. This gives combinedbending and torsion on the shaft in transmitting the drive. In the improved design, Fig. 38, these difficulties… … Fig. 37. Fig. 38. Fig 39. Fig, 40, 5 1 Figs. 37 and 38.—Correct and incorrect design of overhung pulleys. The bush is prolonged and the pulley runs upon its periphery. Thedrive is transmitted through the collar G, which is secured to thepulley, and also taper-pinned to the shaft. The collar F is…
Machine design
