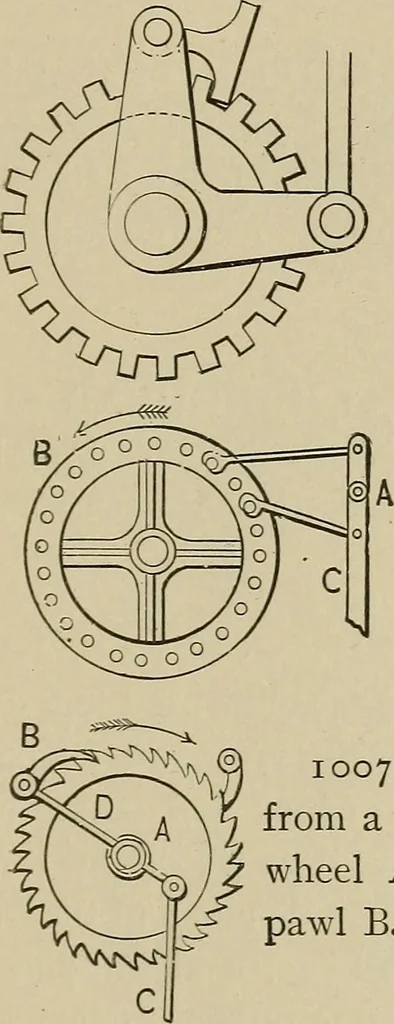

1003. INTERMITTENT CIRCULARMOTION.—Reversible by throwing over the doublepawl. Operated by a reciprocating rod attached tothe disc carrying the pawl. 1004. RATCHET INTERMITTENTMOTION, by the operation of treadles. Pawllevers and pawls are operated through con-necting rods to levers or treadles, the… … 1005. INTERMITTENT CIRCULARMOTION—Reversible by throwing over adouble pawl on the vibrating bell-crank lever.A feed motion for planing machines. 1006. INTERMITTENT ROTARYMOTION of a wheel by vibrating levers andpawls. B, pin-tooth wheel. A, vibrating lever. v^vj 1007. INTERMITTENT CIRCULAR…
