Mechanical movements, powers, devices and appliances; (1903)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The N.W. Henley & co. · leaf 271

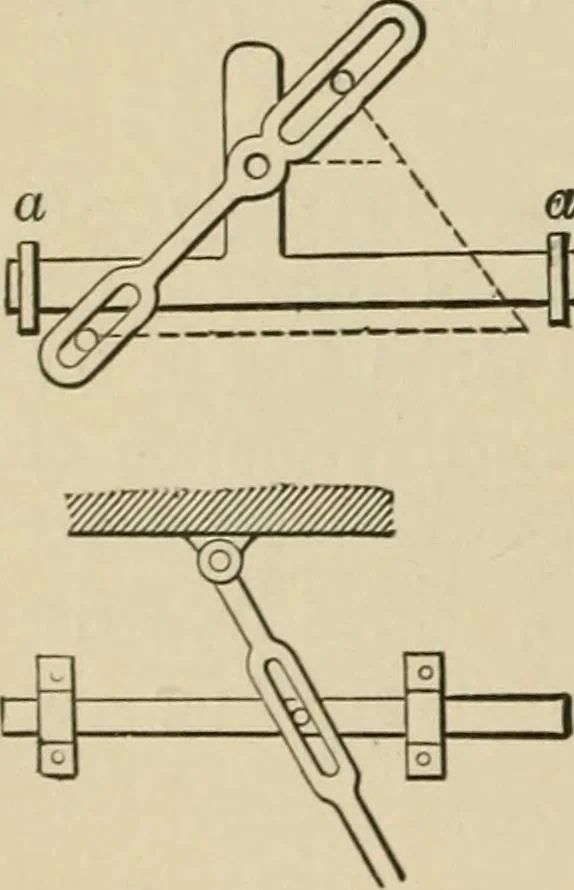

a … 1047. ALTERNATING RECTILINEARMOTION from studs on a rotating disc. Thebar is carried forward by the stud on the discstriking the projection on the bar, and the barreturns by the movement of the bell-crank leverand opposite stud. 1048. TRAVERSE BAR, operated by aslotted lever. The upper pin being…
Mechanical movements
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
