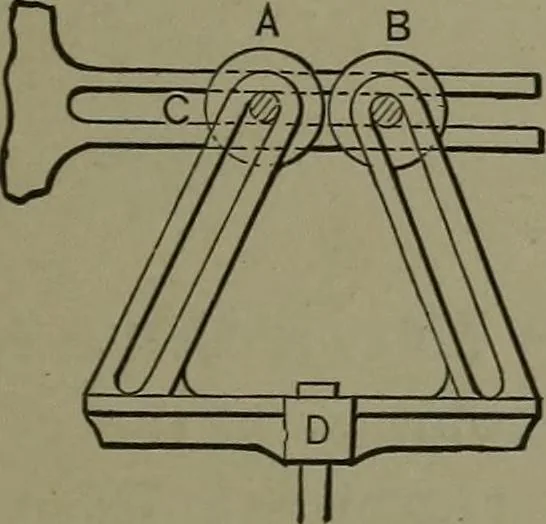

1376. CLOSURE OF ROLLERS by tra-versing the angular slots guiding the rollerbearings. The slot guide C is fixed. Thepiston-rod head D carries the angular slotsthat move the rollers forward and backward. 1377. VIBRATING LIFT.—The revolving drumB lifts the weight W, while the crank-pin connectingrod…
