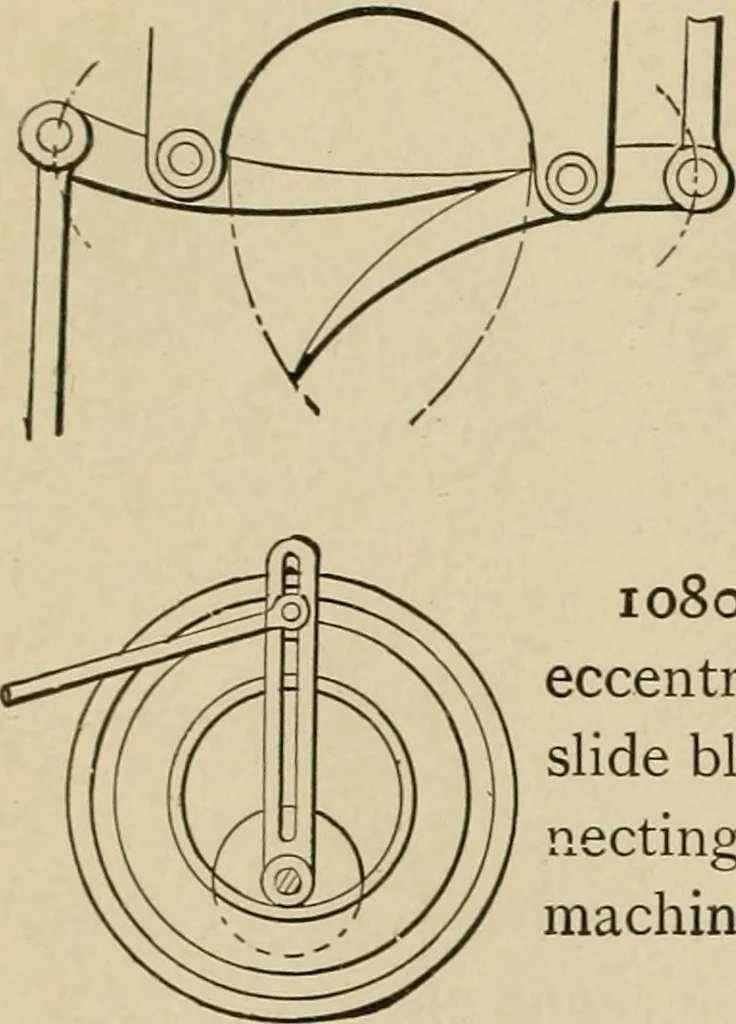

LIDE 1078. ANGULAR WIPERS, for operating thevalves of beam engines. A, the rock shaft; C, thecurved wiper, lifting the angular toe and valve rod. … 1079. EQUALIZING LEVERS ORTOES, for variable rod movement. 1080. VARIABLE CRANK MOTION.—An eccentric slot in a stationary face plate guides aslide block and wrist pin in a slotted crank. Con-necting rod drives the cutter bar of a shaping-machine.
