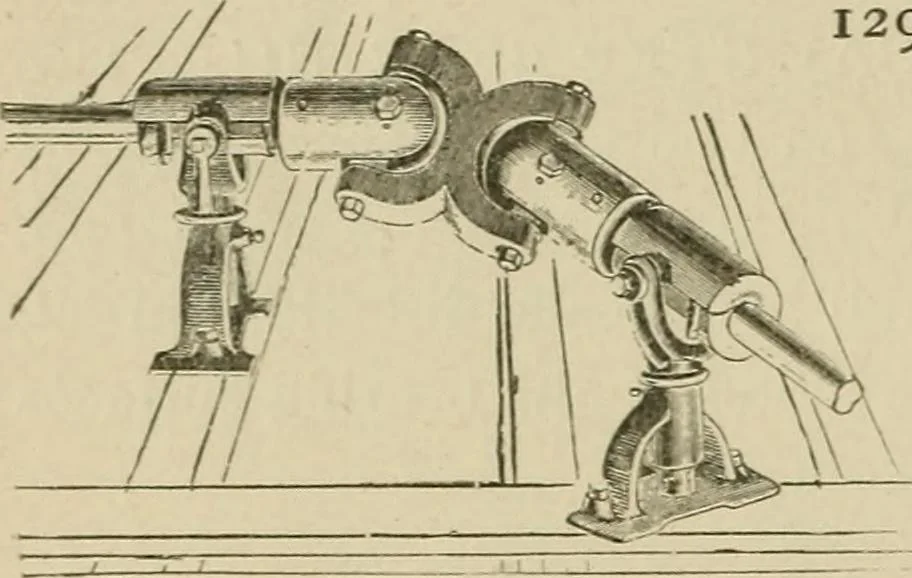

An illustration from Mechanical movements, powers, devices and appliances;, 1903, leaf 327 — 1293. … ANGLE SHAFT COUPLING, Robes patent. The shaft headsare slotted, in which cross barsare pivoted ; the ends of the crossbars are also pivoted to the armsof the double yoke, giving a freemotion to the driven shaft at anyangle greater than a right angle.
