Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 325

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 325

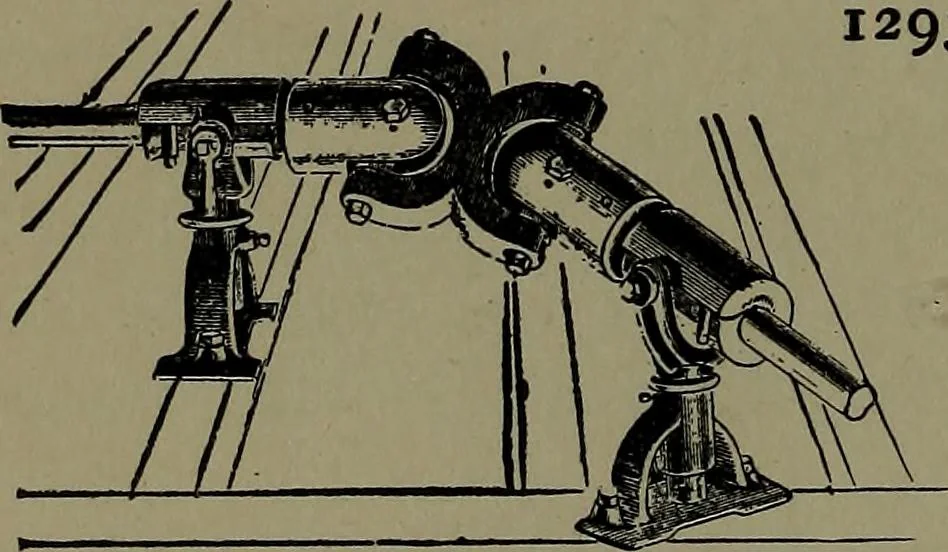

1293. … ANGLE SHAFT COUPLING,* Robes patent. The shaft headsare slotted, in which cross barsare pivoted; the ends of the crossbars are also pivoted to the armsof the double yoke, giving a freemotion to the driven shaft at anyangle greater than a right angle.
