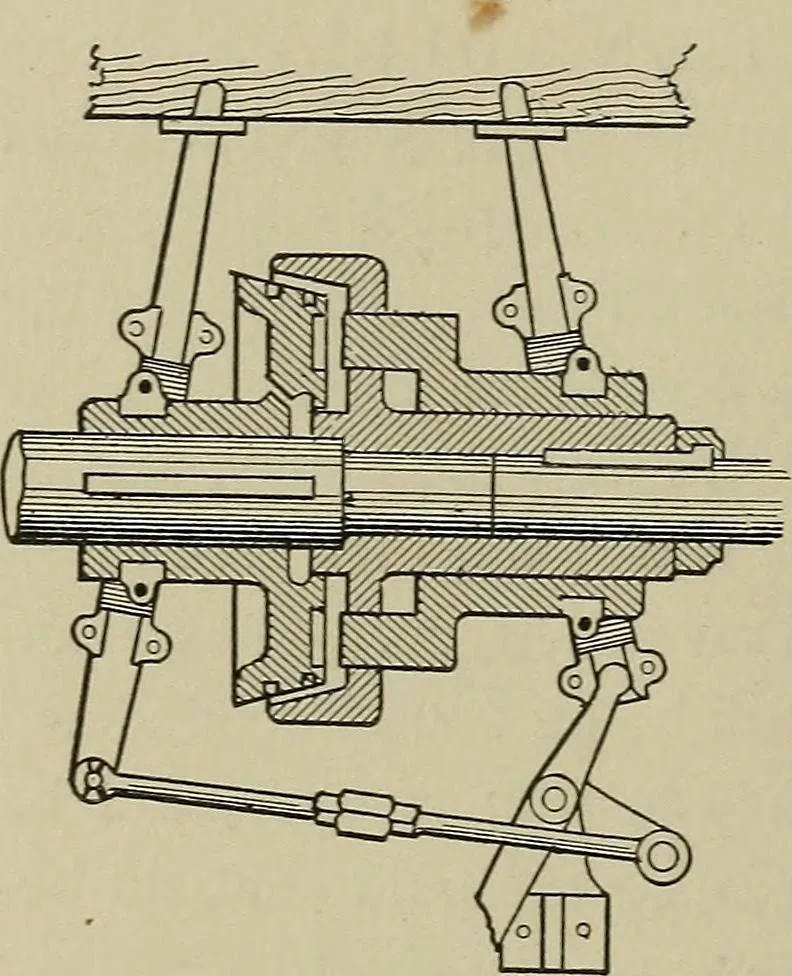

3o TRANSMISSION OF POWER. … 29. POSITIVE COMBINATIONCLUTCH. The first motion of theclutch handle brings the friction conesinto contact; a further push of thehandle moves the teeth of the clutch intocontact and prevents slipping of the fric-tion cones. The bell-crank arm on thehandle holds the clutch fast in its…
