Mechanical movements, powers, devices and appliances; (1903)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The N.W. Henley & co. · leaf 40

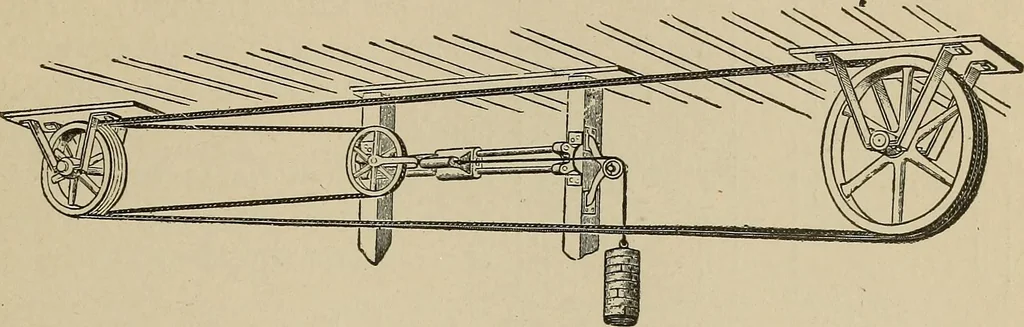

59. TRANSMISSION BY ROPE to a shaft atright angles to the driving-shaft. The guide sheavesgive direction to the rope over the curv^e face of thedriven pulley, the rope slipping towards the centreof the driven pulley. 60. TRANSMISSION BY ROPE toa portable drill or swing saw. D, driving sheave. A,… … 61. HORIZONTAL ROPE TRANSMISSION, with tensionslide and weight.
Mechanical movements
