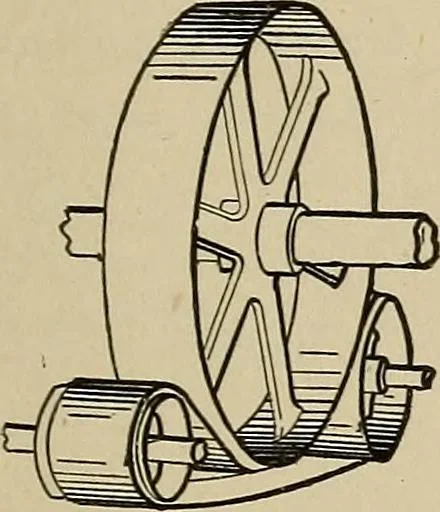

Patent 91. SHIFTING DEVICE FOR CONEPULLEYS.—Made efficient by a division ofthe proper belt width into a number of nar-row belts, kept in place by webs on the belttighteners, which are moved forward and back-ward by a carrier nut and screw shaft. Thisarrangement gives more power for a given… … 92. BELT TRANSMISSION, for short belt andclose connection. The belt is wrapped close to andpressed against the driven pulley by a tighteningpulley. For electric motor power or the driving ofgenerators. 93. BELT TRANSMISSION OFPOWER, at close range. A combinationof friction gear increased by belt…
