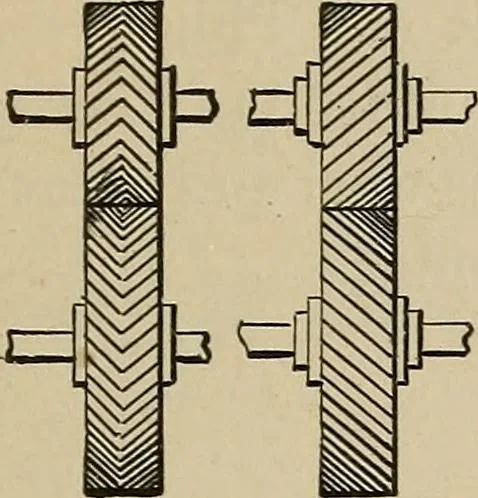

^of hook link forms are in use for link belt trans-mission. 120. TOOTHED LINK CHAIN ANDPULLEY, alternating double and single links. 121. STEP GEAR.—A spur gear in which theface is divided into two or more sections, with theI teeth of each section set forsvard a half or third ofthe pitch, according… … 122. V-TOOTHED GEARING.—The obli-quity of the teeth from the centre of the faceneutrahzes the longitudinal thrust of plain obliqueteeth, as shown in the next pair. 123. OBLIQUE TOOTH GEAR.—A smooth running gear, with slight longitudinal thrust dueto the inclined tooth surfaces.
