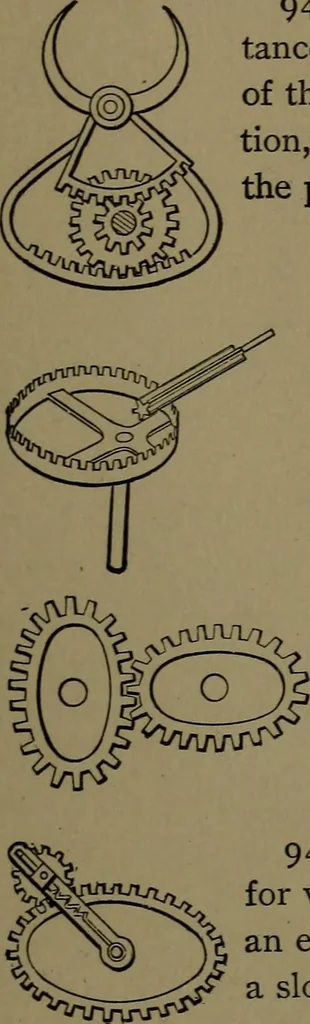

945. SLOW FORWARD AND QUICK BACKcircular motion from the continuous circular mo-tion of a pinion, driving an internal sector pin-ion and an external sector gear. GEARING. 241 … 946. GEARED GRIP TONGS.—The radial dis-tances of the sectors are in proportion to the diametersof the two pinions, which gives the jaws an equal mo-tion, closing them with a strong grip by the action ofthe pinions. 947. VARIABLE CIRCULAR MOTIONby a pinion driving an eccentric crown wheel. 948.…
