Mechanical movements, powers, devices and appliances; (1903)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The N.W. Henley & co. · leaf 62

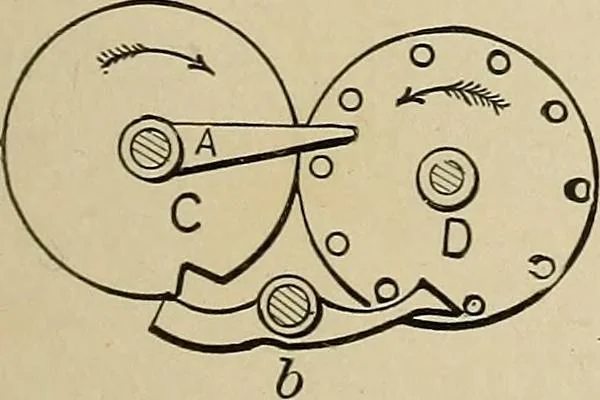

165. INTERMITTENT ROTARY MO-TION, for counters and meters. The tappetA, revolving with the wheel C, carries the wheelD one pin notch per revolution. The pawl bis released by the notch in the wheel C whilethe tappet is in contact with the pin.
Mechanical movements
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
