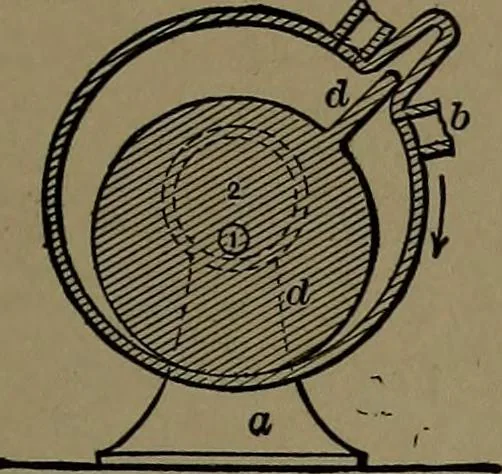

541. PATTISON ROTARY PUMP.—Ahollow winged cylinder in which an eccentric isrotated on an axis central with the outer shell.The piston and socket serve as a guide for thewing. HYDRAULIC POWER AND DEVICES. 147 … 542. COCHRANE ROTARY PUMP.—A slide pocket in the outer shell receives the pistonwing of the inner eccentric cylinder, which swingsin contact with the shell on its centre, 2, carriedaround by a cam crank.
