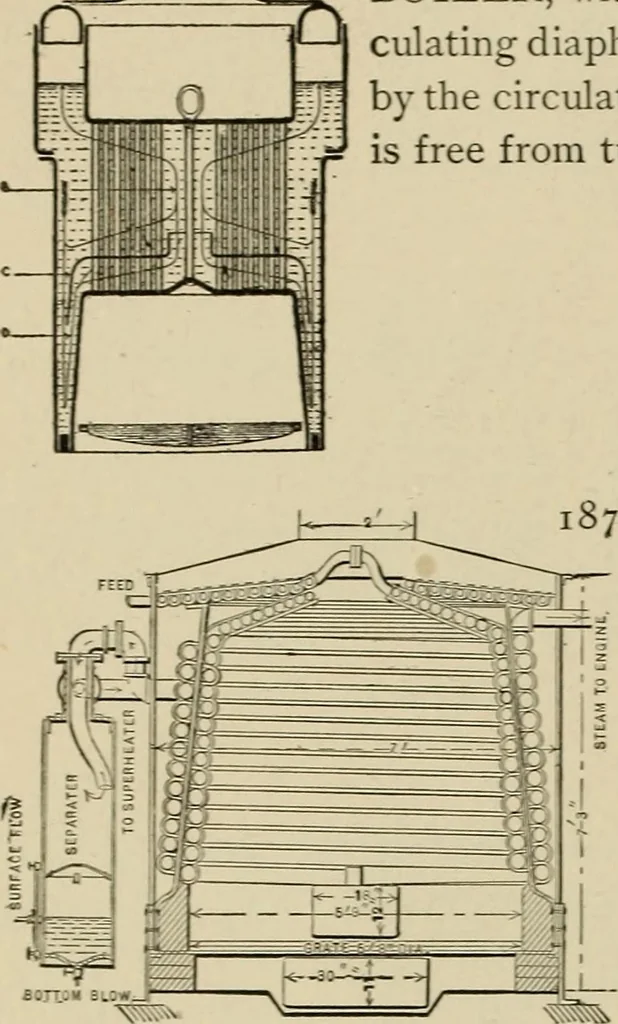

rse-power. 183. DION VEHICLE BOILER.—A central water and steam drum enclosed withinan annular drum, and connected by short in-clined tubes. A light and quick-firing boilerfor a motor carriage. 184. BABCOCK & WILCOXWATER TUBE BOILER.—Inclinedstraight tubes expanded in vertical steelheaders,… … i86. SUBMERGED HEAD VERTICALBOILER, with enlarged water surface, and a cir-culating diaphragm by which the fire head is sweptby the circulation of the water. The central spaceis free from tubes to facilitate circulation. HERRESHOFF BOILER.—A horizontal volute coil at thetop acts as a heater. The…
