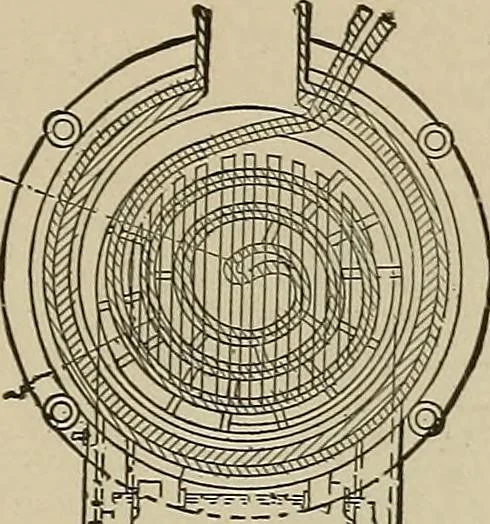

199-200. BOILER OFTHE SERPOLLETTRICYCLE.—The steam(generating surface is madeof iron pipe, flattened andcorrugated, then coiledinto a volute form with theinner end turned up, and the outer end to project through the furnace shell. The cuts show a vertical section and horizontal plan.
