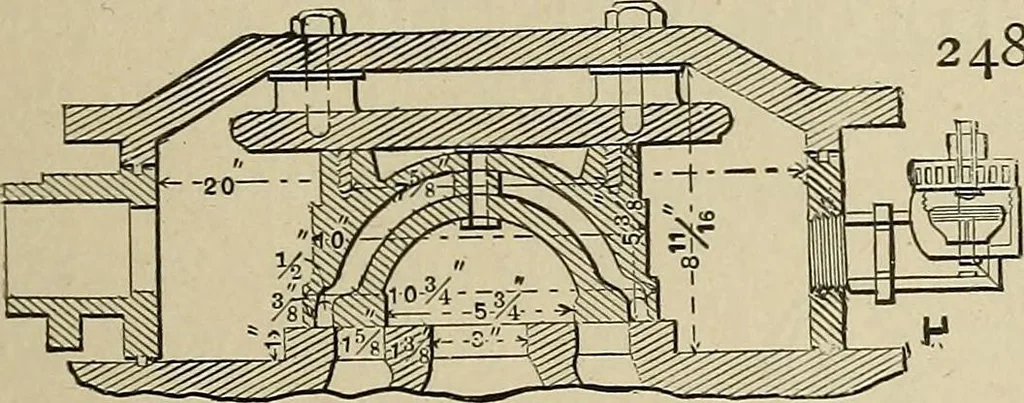

246. BALANCED SLIDE VALVE.—A bell-shaped piston, riding in a packed gland in thesteam chest cover, is connected to the top of thevalve by a link. 247. BALANCED SLIDE VALVE, Buchanan & Richters patent. The arm B carries a roller in the curved slot of the supporting piece D. The V///////^.… … 48. RICHARDSON-ALLEN »BALANCED SLIDEVALVE. —The valve slides under anadjustable plate fixed to thesteam chest cover, and is bal-anced by a recess in the back of the valve that is open to the ex-haust port. 249. BALANCED THROTTLE VALVE, withdirect governor connection.
