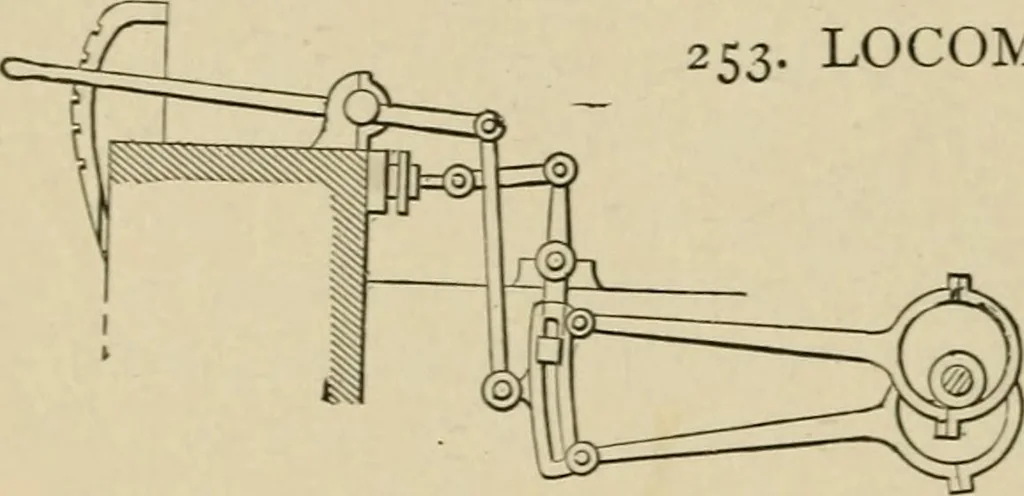

253. LOCOMOTIA E LINK-MOTIONVALVE GEAR.—In this-arrangement the slottedlink is moved up anddown over the wrist pinblock by the lever andconnecting rod; the le-ver, locking in the toothed sector, allowing for a close connection tothe valve stem by a lever and short connecting rod.
