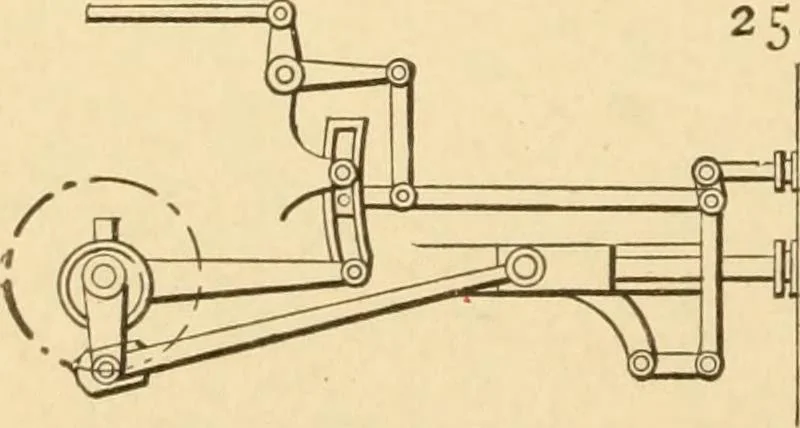

254 … WALSCHAERTS VALVE GEAR. —The slotted link is hung at its centreon a fixed pin. The valve-rod blockis raised or lowered by the bell-cranklever. Lead is made by the cross-head link and lever. STEAM POWER. 7S
