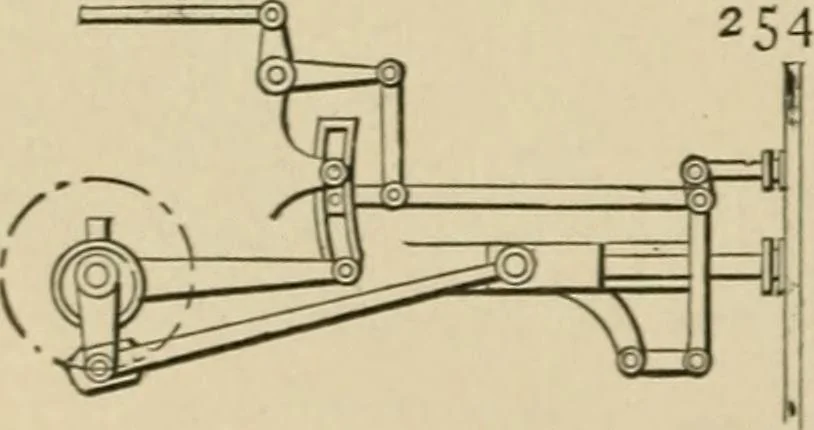

253. LOCOMOTIA E LINK-MOTIONVALVE GEAR.—In this-arrangement the slottedlink is moved up anddown over the wrist pinblock by the lever andconnecting rod; the le-ver, locking in the toothed sector, allowing for a close connection tothe valve stem by a lever and short connecting rod. … WALSCHAERTS VALVE GEAR. —The slotted link is hung at its centreon a fixed pin. The valve-rod blockis raised or lowered by the bell-cranklever. Lead is made by the cross-head link and lever. STEAM POWER. 75
