Mechanical movements, powers, devices and appliances; (1903)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The N.W. Henley & co. · leaf 84

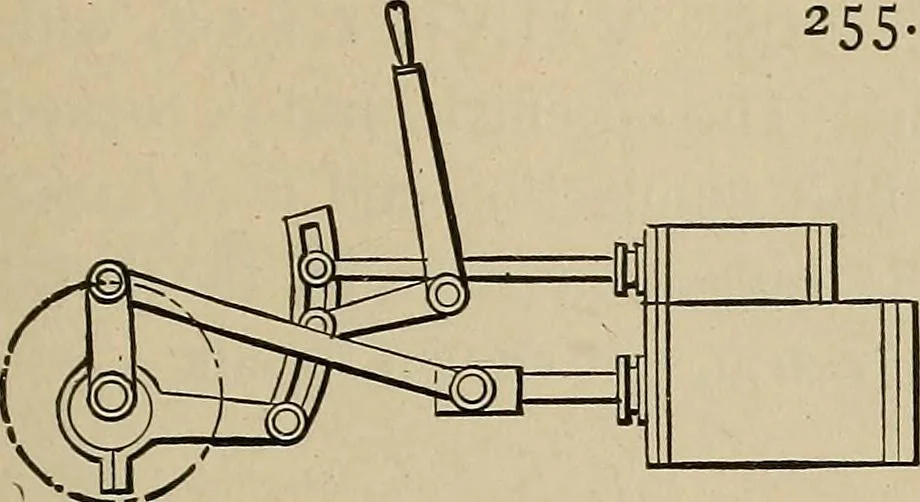

WALSCHAERTS VALVE GEAR. —The slotted link is hung at its centreon a fixed pin. The valve-rod blockis raised or lowered by the bell-cranklever. Lead is made by the cross-head link and lever. STEAM POWER. 75 … REVERSING LINK MOTION. —The slotted link is pivoted tothe end of the eccentric rod and ismoved up and down by the bell-crank lever. The block carrying thevalve rod is stationary in the slot.
