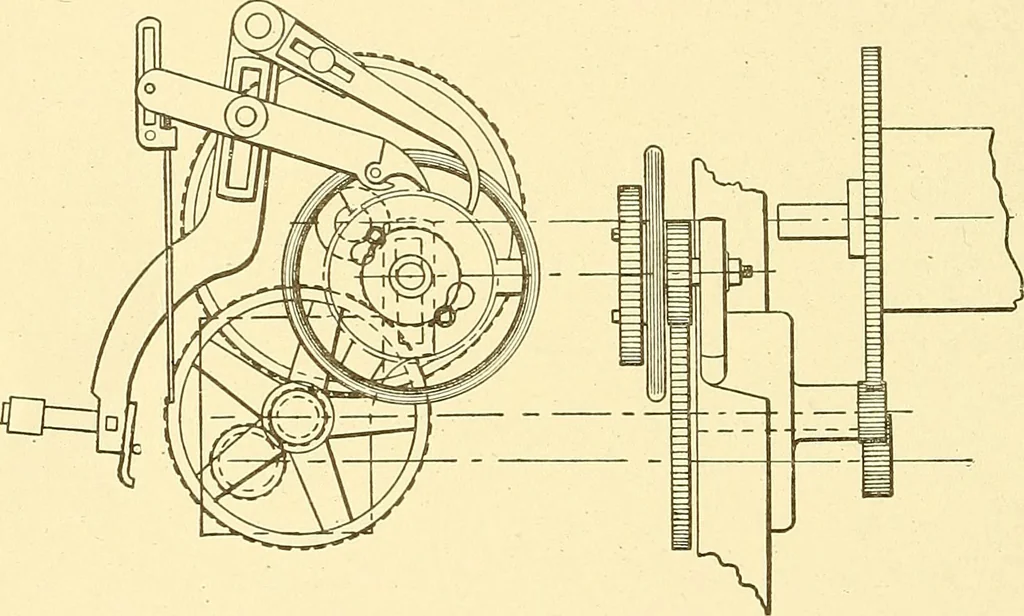

it is simplya continuation of the motion shown on Fig. 100. A worm, is aspiral thread gear, and resembles a spiral ridge cut aiound a shaft.A worm gear, is almost like a spur gear, or what is commonlycalled an ordinary gear; but the teeth are set slightly on an angle,so as to mesh more perfectly in… … Fig. 101. Negative Take-Up Motion. When calculating tlie speed of a train of gears, wliich re-ceives motion from a worm, the worm is reckoned as one, that isa one toothgear. A double worm would be counted as two. Example. • 16 X30 X 62 X 62 _ ^ _ 30 X 1 X 12 X 26 X 15 — 12 X 2 _ 24 Picks. E is the…
