Mechanical movements, powers, devices and appliances; (1903)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The N.W. Henley & co. · leaf 86

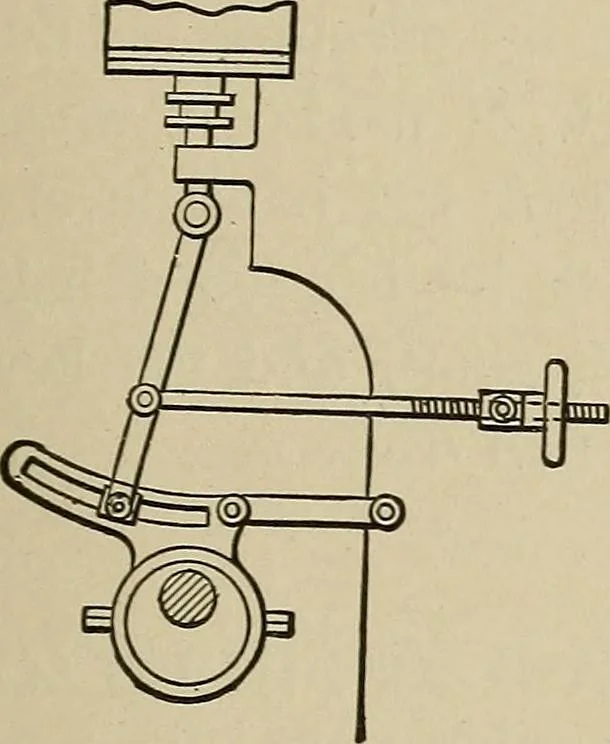

263. VARIABLE EXPANSION GEAR, with one eccentric. The movement of thefulcrum of the eccentric bar lever by thescrew changes the throw of the valve. … 264. SINGLE ECCENTRIC VARIABLEVALVE THROW.— Fink link gear for aD valve. The link block is moved in thecurved slot of the link for variation of valvethrow, adjustable by the hand-wheel.
Mechanical movements
