Mechanical movements, powers, devices and appliances; (1903)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The N.W. Henley & co. · leaf 88

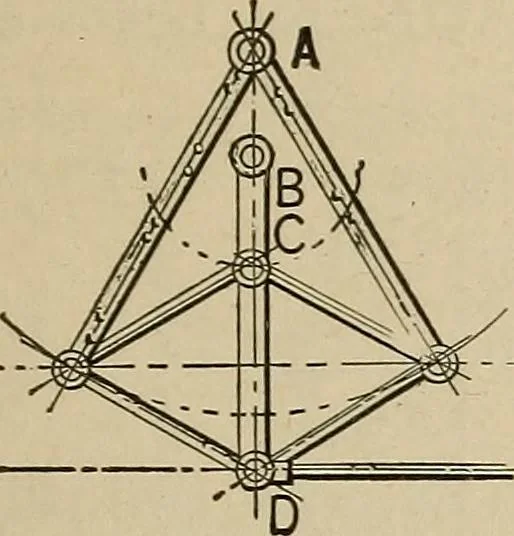

3 272. VALVE MOTION ECCENTRIC. —The rocker connecting link increases themotion of the valve rod and travel of thevalve. STEAM POWER, 79 … 273. « PEAUCELLIERS PARALLELMOTION.—A, B and B, C are of equal distances,when the connecting rod will move in a straightline. When B is connected with the outer jointof the link quadrangle the inner joint C willhave a straight-line motion.
Mechanical movements
