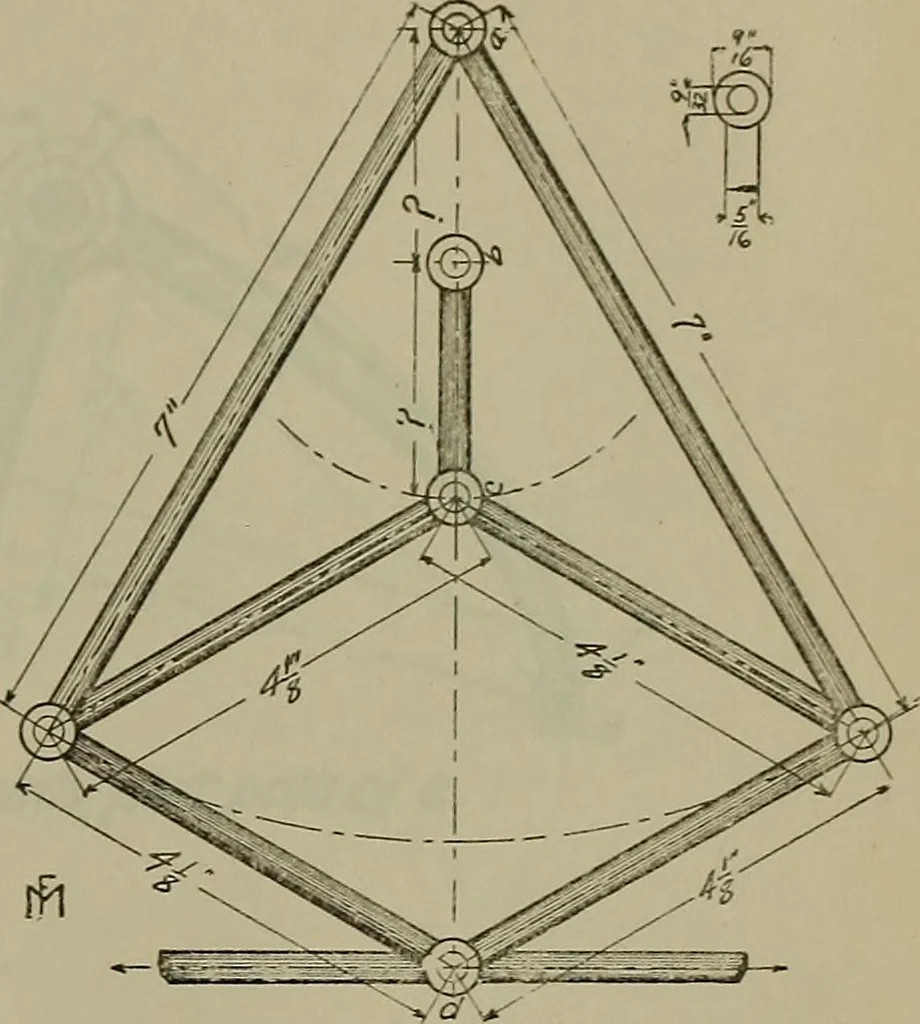

MECHANICAL DRAWING 72 (a) When ab = be, with a and b as fixedpoints, find the path of motion, and distancdthrough which d can move each side of line ad. (b) If, when ab = be, with a and b as fixedpoints, b and d should b3 conndctzd by a linkcrossing c, what would be the path of motion,and distance… … MECHANICAL DRAWING 73
