Mechanical movements, powers, devices and appliances; (1903)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The N.W. Henley & co. · leaf 91

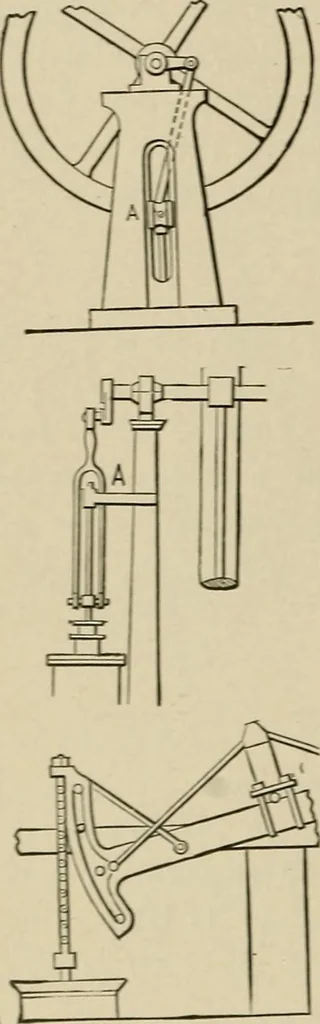

289. CROSS-HEAD SLIDE athwart theshaft. An obsolete design for a vertical enginein a side-wheel steamer. ^^^^^j: … 29c. PARALLEL MOTION by guide bars mthe frame of a vertical engine, with connectingpiston rod and crank. Cross-head sliding in aslot in the frame. Old. 291. PARALLEL MOTION to piston rodand cross-head by prolonging the piston rodthrough a fixed guide and connecting to thecrank \\-ith a forked rod.…
