Mechanical movements, powers, devices and appliances; (1903)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The N.W. Henley & co. · leaf 94

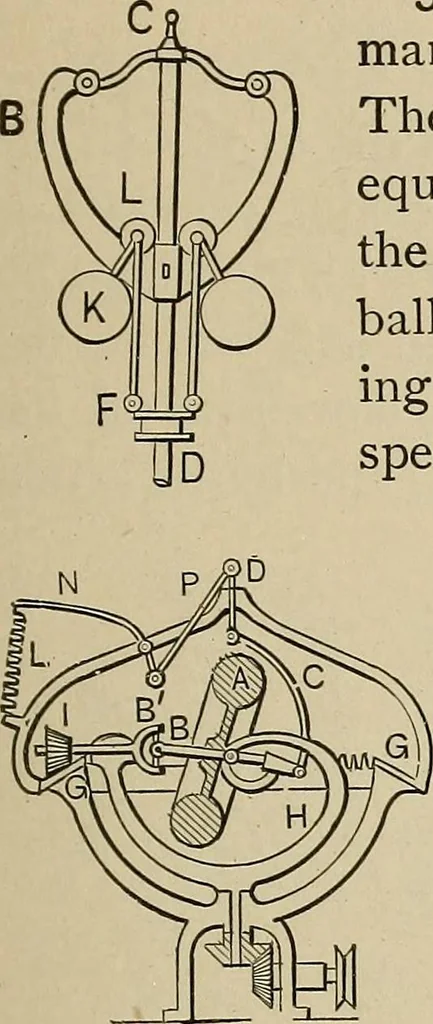

301. SPRING BALANCED CENTRIF-UGAL GOVERNOR, Proell patent.—Theballs are attached to the inverted arms b^ b, andraise the collar sleeve by their outward throw.The movement is restrained by the vertical leafsprings and links. The lift is controlled by thecurved links hung from the cross bar at/.… … 302. PARABOLIC GOVERNOR.—One of themany curious devices for governing steam engines.The paraboHc form of the guide arms is intended toequaHze the motion of the grooved slide by modifyingthe effect of centrifugal force in the position of theballs. Also called an isochronous governor, produc-ing…
