Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)
Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 100

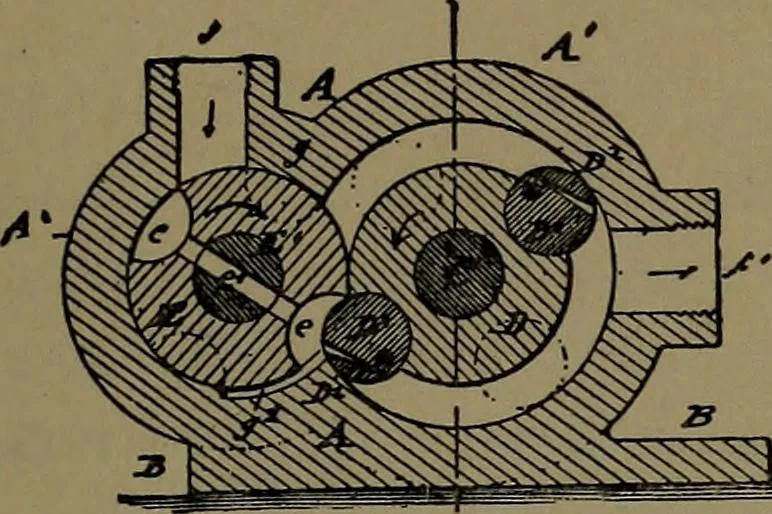

[HyMiiiiilllituiiiiiiiiiirevolves the disc and shaft. 336. « SMITH ROTARY ENGINE.—Four arms with cylindrical sectors are rotatedaround an axis central to a perforated cylindricalshell. The driven shaft and head discs are ec-centric to the shell. The pressure of steam be-tween the wings tends to… … 337. BERRENBERG ROTARYENGINE.—Two intersecting cylindricalshells. The steam cylinder D has twocylindrical pistons, D, D, on oppositesides, that mesh in corresponding cavi-^- ties in the cylindrical steam valve, bothrotating in unison by equal external gearing. The steam port passesthrough the…
