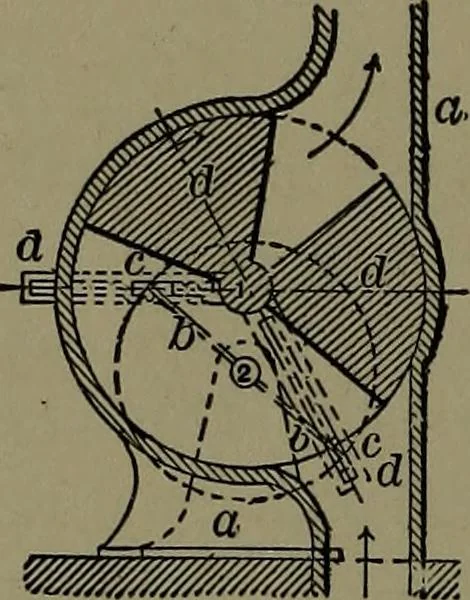

343. STOCKER ROTARY ENGINE.-—The sector pistons are each connected throughcentral concentric shafts to slotted cranks inwhich a sliding box and link connect to a crankon a shaft eccentric to the sector shaft. A differ-ential motion of the sectors is produced whilerotating which rotates the driven…
