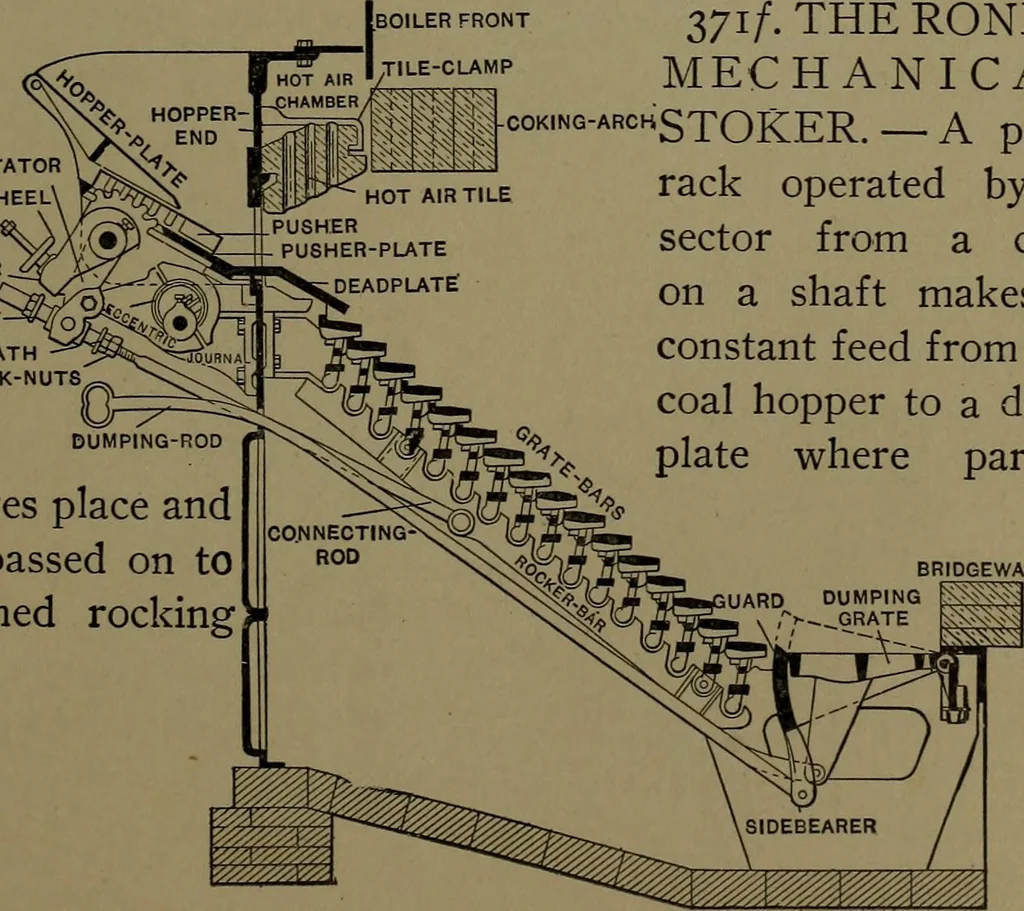

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 108
d intothe hopper, passes through ascreen B, and regulated in itsflow by the elastic plates C andD and the link at E. The screw Fregulates the brush pad so thatthe brush throws both air and,coal dust. J are the draft holes,K a screen with a mirror to viewthe fire. Brush makes 900 revo-lutions per… … BRIDGEWALL I02 STEAM POWER.
