Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 122

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 122

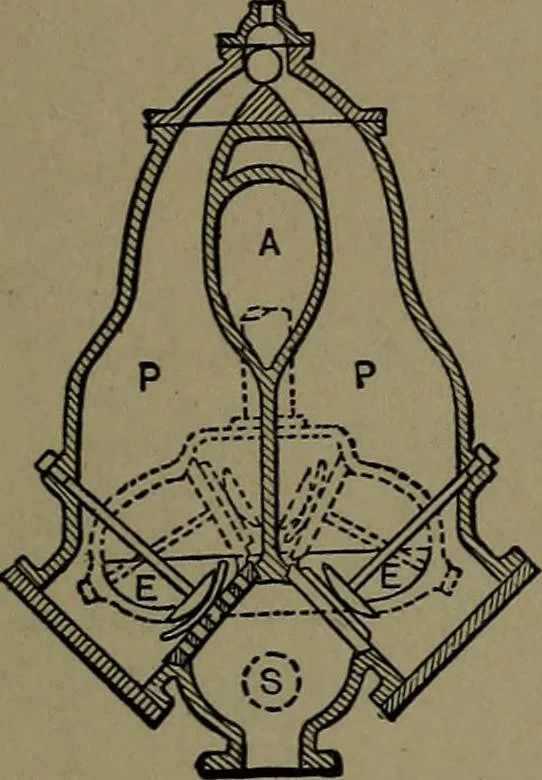

421. CENTRIFUGAL EXHAUST HEAD.—The exhaust steam head enters the drumtangentially, throwing the particles of wateragainst the outer surface to drip to the bottom, STKAM APPLIANCES. 115 … 421a. THE PULSOMETER STEAMPUMP.—Water is forced from each cham-ber alternately by the steam pressure,while the opposite chamber is filled by thevacuum caused by the condensation of thesteam in contact with the wet surface. Theball valve is very lightly balanced and isthrown over by the alternating…
