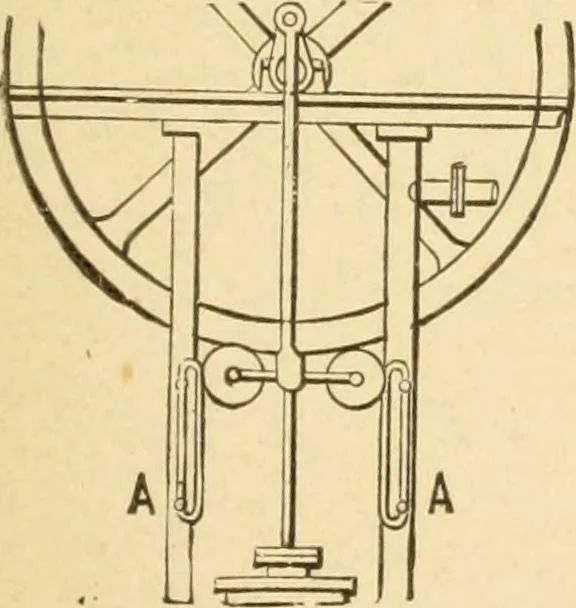

1 [ … 287. CARTWRIGHTS PARALLELMOTION for steam engines by gearedwheels. A free cross-head on piston rod andconnected to two cranks on shafts with equalspur gears from which power is transmittedthrough a third spur wheel. Very old (lySy). 288. PARALLEL MOTION by a cross-head and rollers running against…
