Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 124

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 124

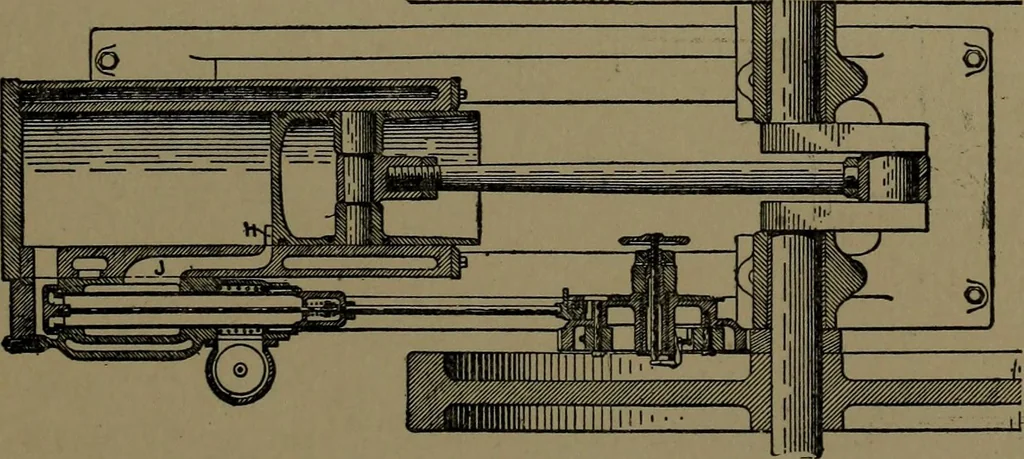

422. GASOLINE ENGINE, Olds model. Plan showinglocation of valve chest and valve gear, operated from an eccentric withan alternating sector gear for an impulse at every other revolution. … 423. SECTIONAL PLAN OF A GASOLINE ENGINE.— Four-cycle type, with exhaust port opened by the piston at the endof the stroke, and continued exhaust through an annular valve aroundthe inlet valve. The charge is heated and vaporized in the valyechamber by the exhaust. Olin model. ii8 MOTIVE POWER.
