Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 125

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 125

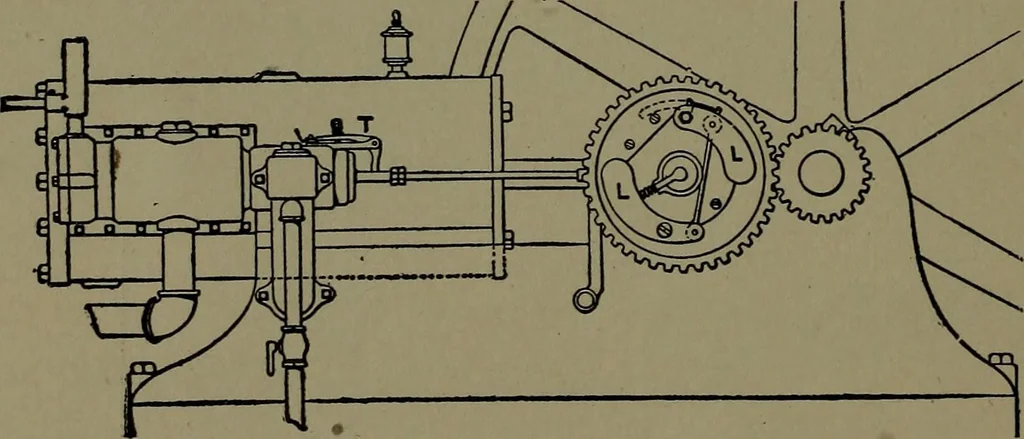

424. SIMPLE GAS OR GASOLINE ENGINE.—A, inletvalve ; E, exhaust valve ; gasoline enters by gravity at G, regulatedby a faucet. Air enters at B by the suction of the piston, atomizingthe gasoline as it drops into the air chamber. The tube igniter isheated by a gasoline burner beneath the bell mouth.…
