Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 128

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 128

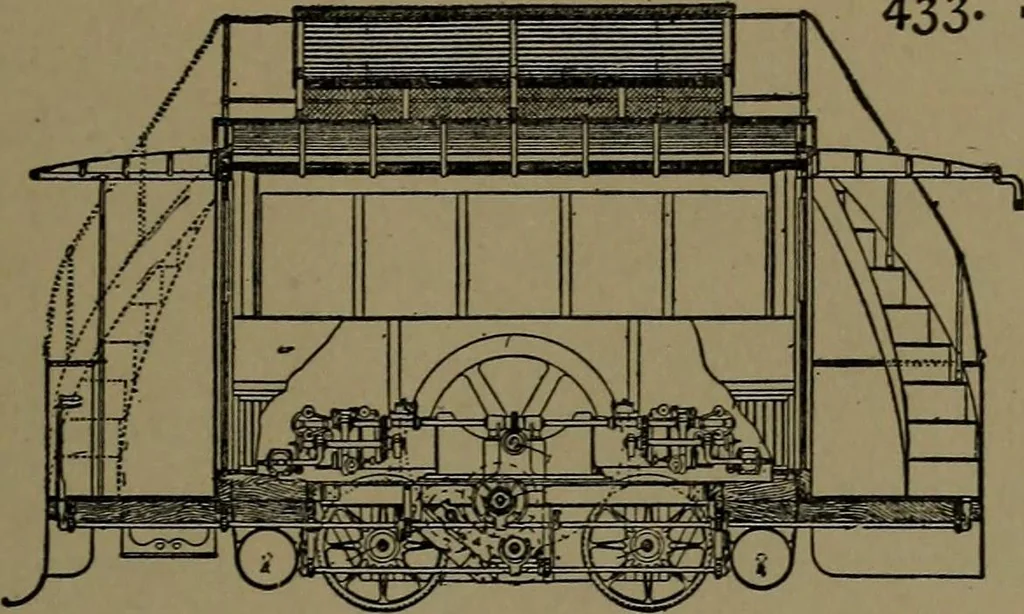

ke of the piston. E, clearance space; B, guard on pis-ton ; A, crank chamber; F, tube igniter; D, O, inlet valves. MOTIVE POWER. 121 433- STREET RAILWAY GASMOTOR PASSENGERCAR, German model. Themotor consists of two cylin-ders on opposite sides of thecrank shaft, placed underthe seats. The fly-wheel…
