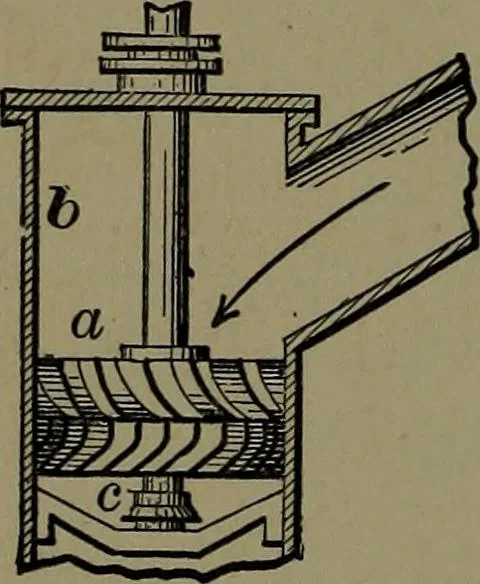

486. JONVAL TURBINE. — The upperinclined blades are fixed. The Ipwer inverseblades form the wheel. … 487. JONVAL TURBINE.—^, The case ; a, the chute or directrix, fixed; c, the wheelbuckets. The curved buckets are set slightlytangent and curve downward in parabolic orcycloidal form. Water discharges downward.Efficiency from eighty to eighty-five per cent.
