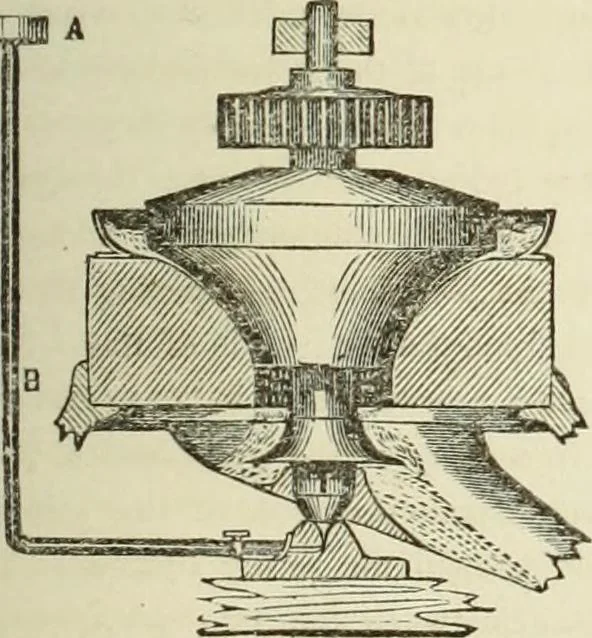

dge of a ruler, whilst the wire carrying the pen is left tofind its way from its initialangular position, to that ofa line in the same plane asthe slider; and, in doingthis, the pen describes thecurve we have represented.Fig. 3 is a vertical sectionof a millstone arrangementon this system,… … also shows the adaptation of the principle to footsteps, togetherwith a new system of lubrication of these surfaces so liable toextreme abrasion. Tho oil supply is kept in an elevated vessel, a,whence a pipe, b, proceeds downwards to the footsteps, uponwhich a pressure is thus constantly kept by…
