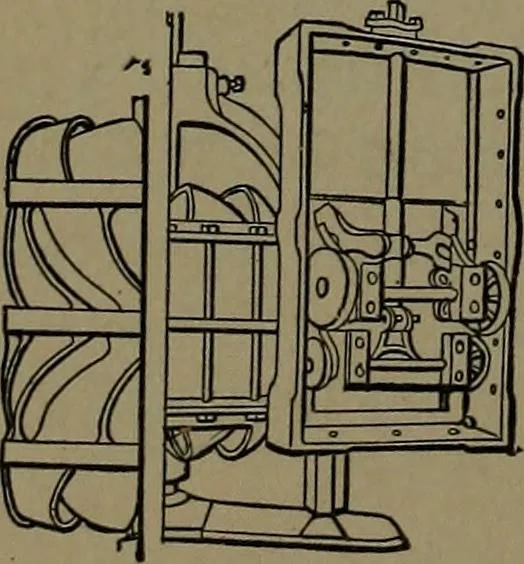

489. LANCASTER TURBINE, downwarddischarge. The upper parts of the blades are vertical,and receive water tangentially from the gate plates. … 490. MUNSON DOUBLE TURBINE.—The water discharges both upward and down-ward through curved guide blades, to reversecurves in the top and bottom wheel blades. HYDRAULIC POWER AND DEVICES. 137 ^[^ 0
