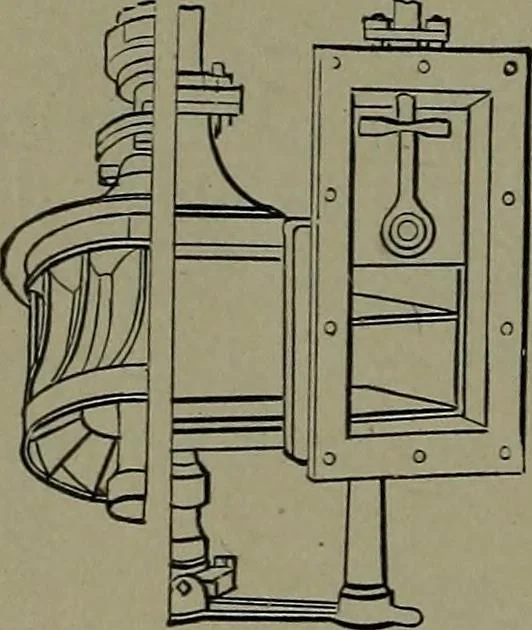

487. JONVAL TURBINE.—^, The case ;a^ the chute or directrix, fixed; c^ the wheelbuckets. The curved buckets are set slightlytangent and curve downward in parabolic orcycloidal form. Water discharges downward.Efficiency from eighty to eighty-five per cent. … 488. TURBINE AND GATE.—A downwardflow from angular fixed guides in the waterchamber.
