Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 151

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 151

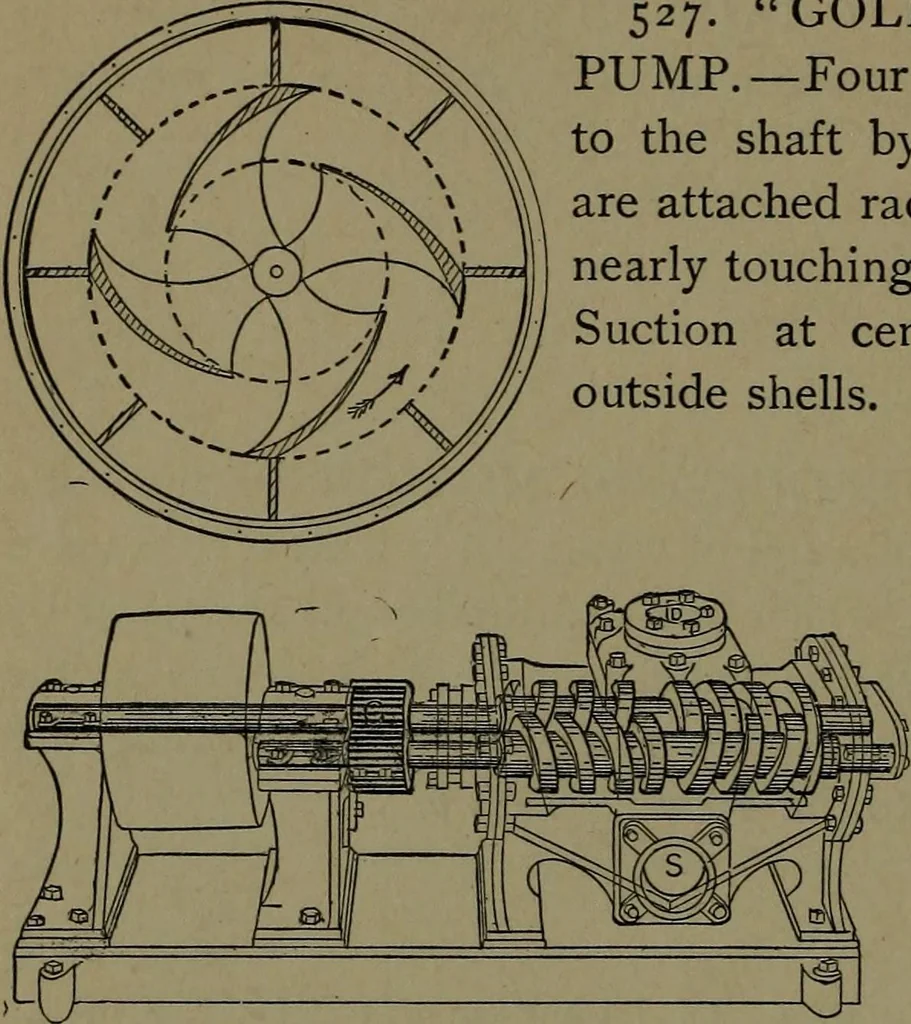

of the valve spindle with a stop at thebottom of the bucket run; the weight lifting thebucket again to the spout. Very old. 524. WELL PULLEY AND BUCKETS.Buckets are balanced empty. 525. SWAPE, OR NEW ENGLAND SWEEP.—A very ancient as well as modern method ofraising water from wells. The weighted… … 527. GOLDING CENTRIFUGALPUMP.—Four volute blades are attachedto the shaft by arms. To the outer caseare attached radial blades with their edgesnearly touching the revolving volute blades.Suction at centre; discharge at sides ofoutside shells. 528. QUIMBY SCREWPUMP.—The screws re-volve, meshed in…
