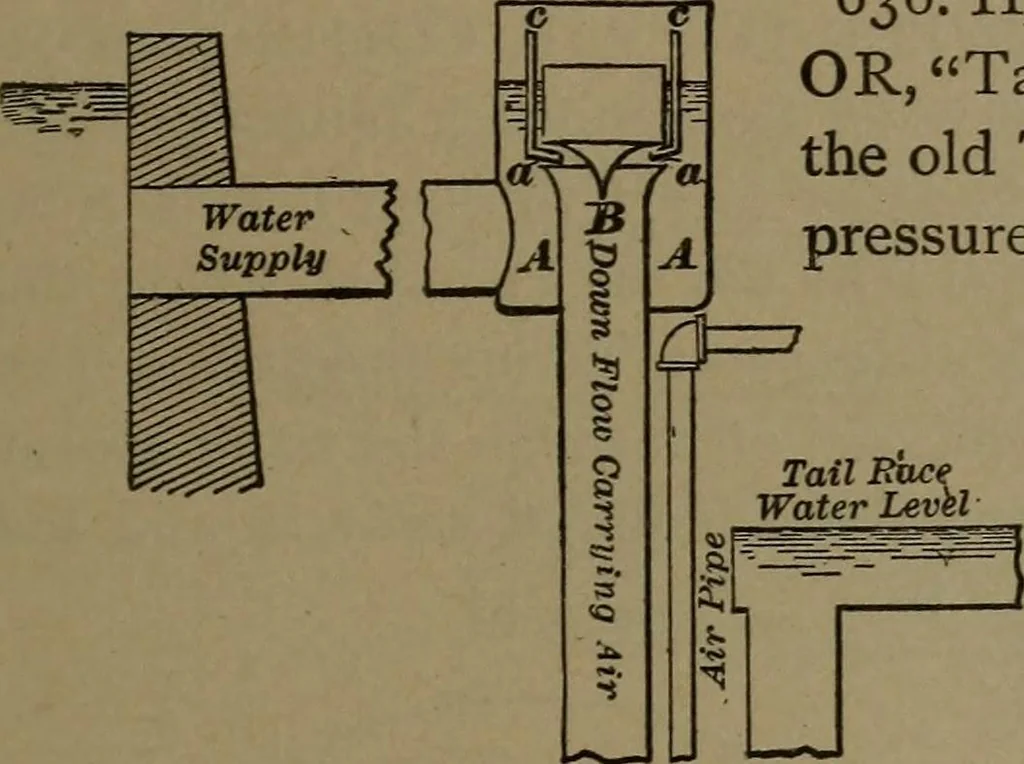

635. AIR COMPRES-SOR.— Elevation of duplextype, showing connectingrod and yoke frame. Clayton model. AIR POWER APPLIANCES. 171 … (. ^ 1 s 1 0 A. hJ 636. HYDRAULIC AIR COMPRESS-OR, Taylor system. The principles ofthe old Trompe blower extended for highpressures. A number of air tubes, c, c,terminate at the conical entranceof the down-flow pipe, B, at a, a.A supply of water to the cham-ber A, A, and its flow down thepipe,…
