Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 182

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 182

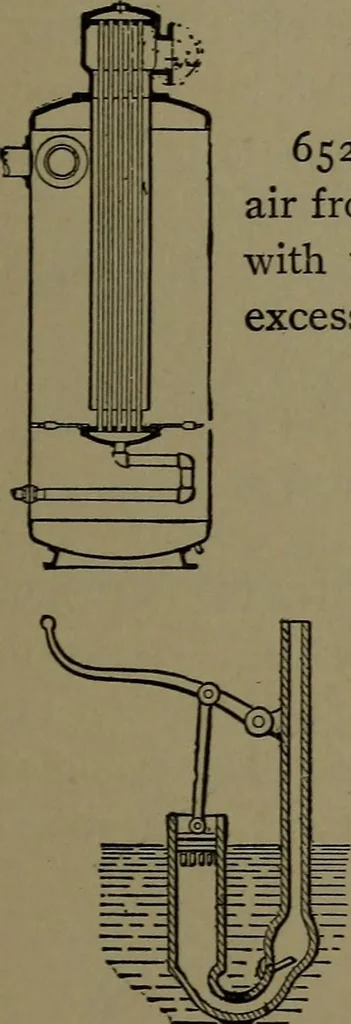

651. AIR COMPRESSOR GOVERNOR.— Controlling the speed by the ordinary action ofthe governor balls, and also reducing the com-pressor to minimum speed when the air pressurebecomes excessive. The ball and lever at theright are lifted by the air pressure in the smallpiston, and force the valve rod and… … 652. AIR COOLING RECEIVER, for cooling theair from a compressor. A series of tubes between headerswith water circulation cools the air and condenses theexcess of moisture. * Ingersoll-Sergeant model. 653. SINGLE VALVE AIR PUMP.—The upper part of the cylinder is perforated, so thatthe piston when…
