Cyclopedia of locomotive engineering, with examination questions and answers; a practical manual on the construction care and management of modern locomotives (1916)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & co., pub. for Sears, Roebuck & co. · leaf 609

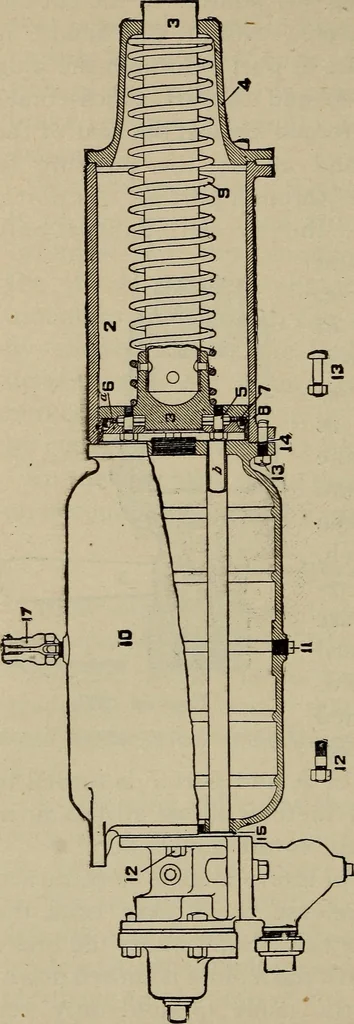

American Machinist X Figure 237Pressure-Retaining Valve s&> LOCOMOTIVE ENGINEERING … Figure 238.—Triple Valve, Aux-iliary Reservoir and BrakeCylinder Combined With the retainerhandle turned up, thesecond application ofthe brakes will give amuch higher brake-cylinder pressure, ifthe auxiliary has beenallowed time enough torecharge, because thepressure that is alreadyin the cylinder…
Locomotives
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
