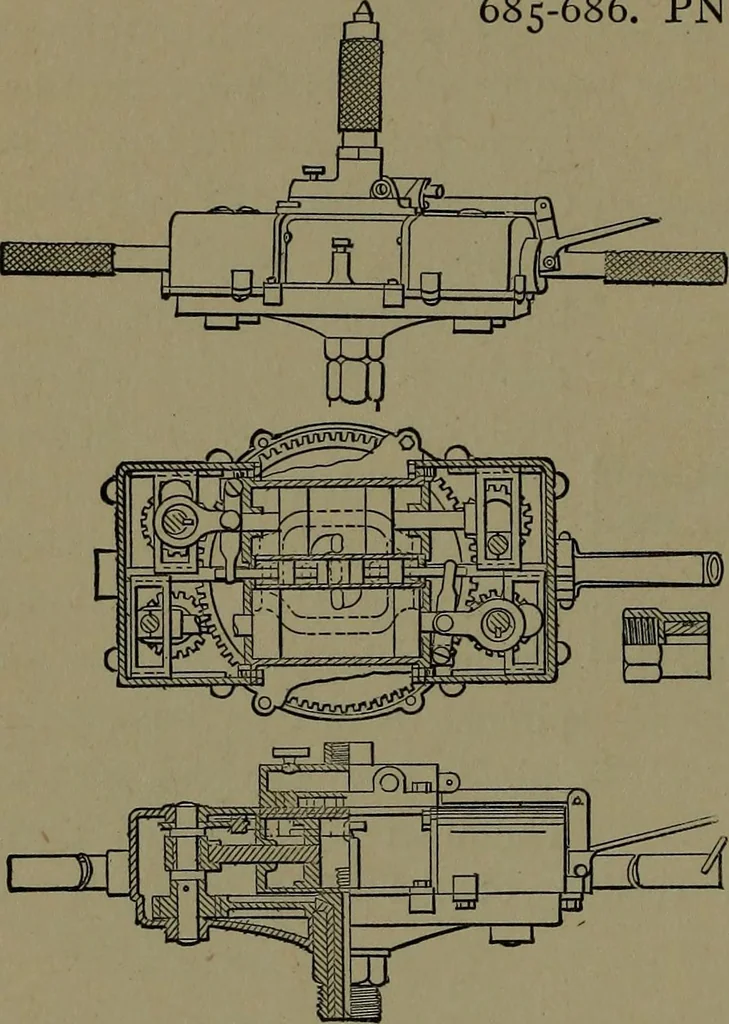

i84 AIR POWER APPLIANCES. … 685-686. PNEUMATIC MOTOR DRILLSTOCK, operated by four pis-tons in two cylinders, double-acting. The piston rods havea jointed connection to camcranks on the pinion shafts.The piston valves are oper-ated by levers pivoted to op-posite piston rods, as shown inthe horizontal section, No. 686.The…
