Kirkman, Marshall M. (Marshall Monroe), 1842-1921 · New York and Chicago, The World railway publishing company · leaf 167

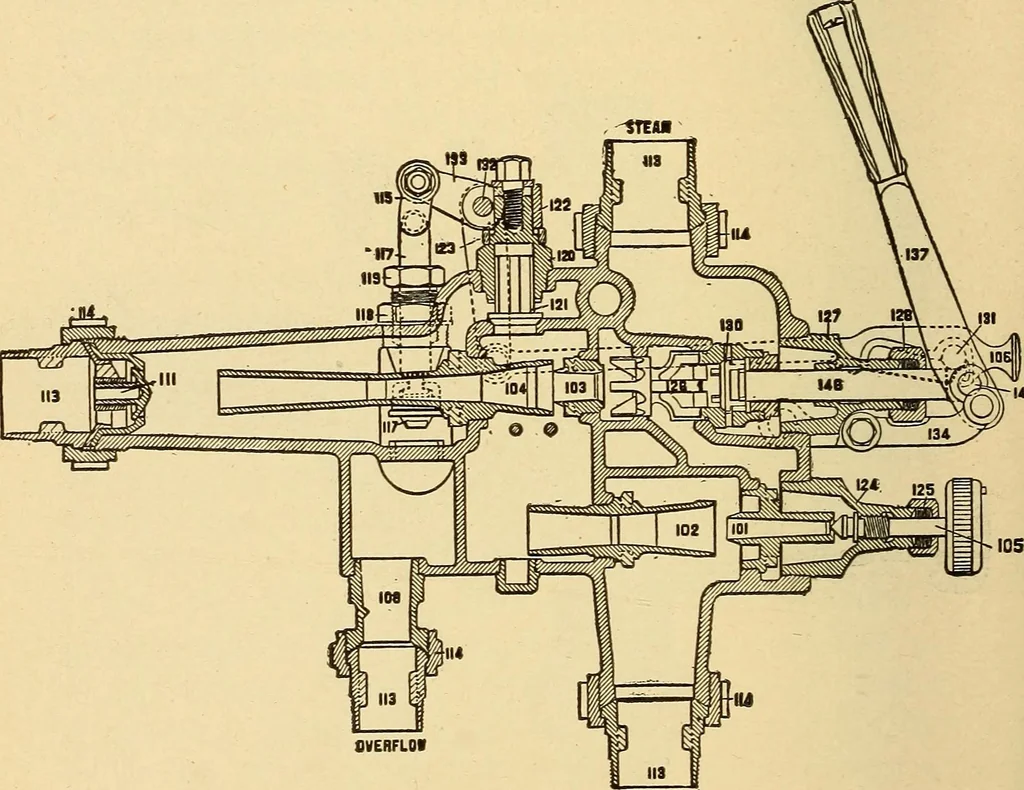

ow it out thoroughly before connectingthe inspirator, to remove any redlead, chips, etc. All openings in the steam connections from theinspirator to the dome and the openings in the suction 158 LOCOMOTIVE APPLIANCES. or feed-pipe connections from the inspirator to the tankmust be of ample size. The… … SUCTION Fig. 9.Hancock Locomotive Inspirator. Operation.—To start the inspirator draw tne leverback to lift the water, then draw it back slowly to thestop. When the lever 137 is drawn back slightly,steam is admitted to the lifter steam valve 130 throughthe forcer steam valve 126 to the lifter steam…
Locomotives
