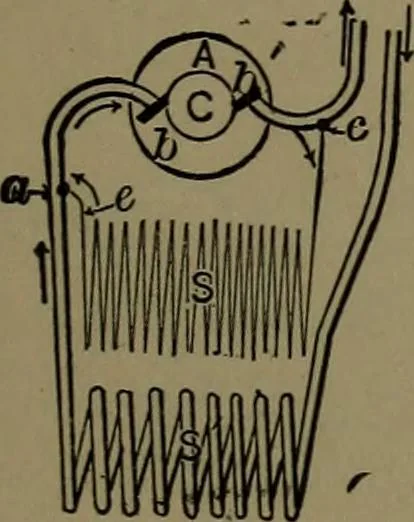

714. FOUR-POLE COM-POUND GENERATOR, show-ing shunt winding and rheostatconnection. Wiring is successiveon each pole in the oppositedirection for both shunt andcurrent. … 715. ELECTRIC GENERATOR CONSTRUC-TION.—Compound winding, in which a winding ofthe field magnets is in shunt with the armature, anda second winding of the field magnets is m series ordirect connection with the outer circuit. The shuntwinding should be small wire. S, Shunt connected with armature…
