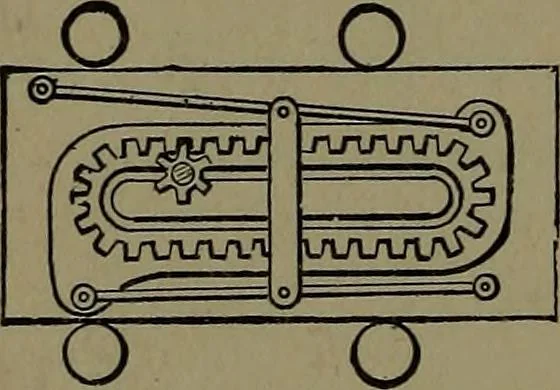

899. MANGLE RACK.—A reciprocating mo-tion of a frame to which is attached a pin-toothrack, the pinion being guided by the shaft rid-ing m a vertical slot, not shown. … 900. MANGLE RACK with stationary pinion.The rack and slot frame are jointed to the manglebox, riding in mesh with the pinion by the slotguide, leaving the mangle box free to ride and tipon the rollers.
