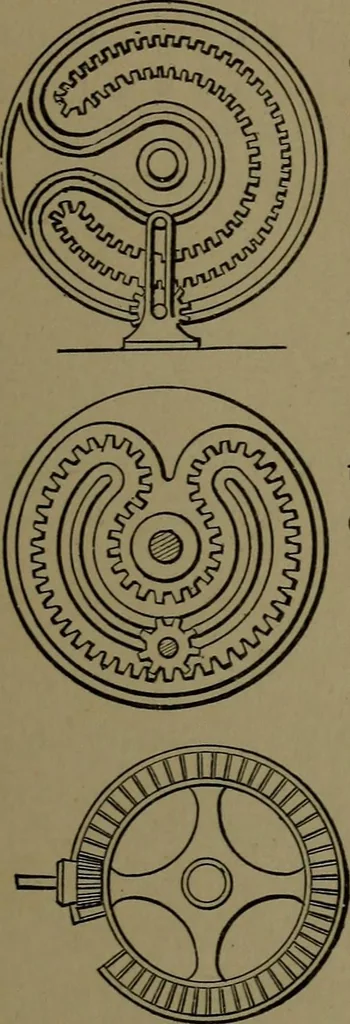

l motionforward and return. The pinion moves over thesame teeth in both motions. The pinion movesvertical in a guide slot, not shown. The end ofthe shaft is guided vertically by the groove keep-ing the pinion teeth in mesh. 903. MANGLE WHEEL GEAR in the oper-ation of which the speed varies in every… … 904. CONTINUOUS ROTARY MOTIONof a pinion producing reciprocating motion of thedouble-geared wheel carrying drum of a mangle.The slotted stand allows the pinion shaft to riseand fall, its end guided by the slot in the return-gear wheel to give the mangle drum a quickreturn. 905. MANGLE WHEEL with…
